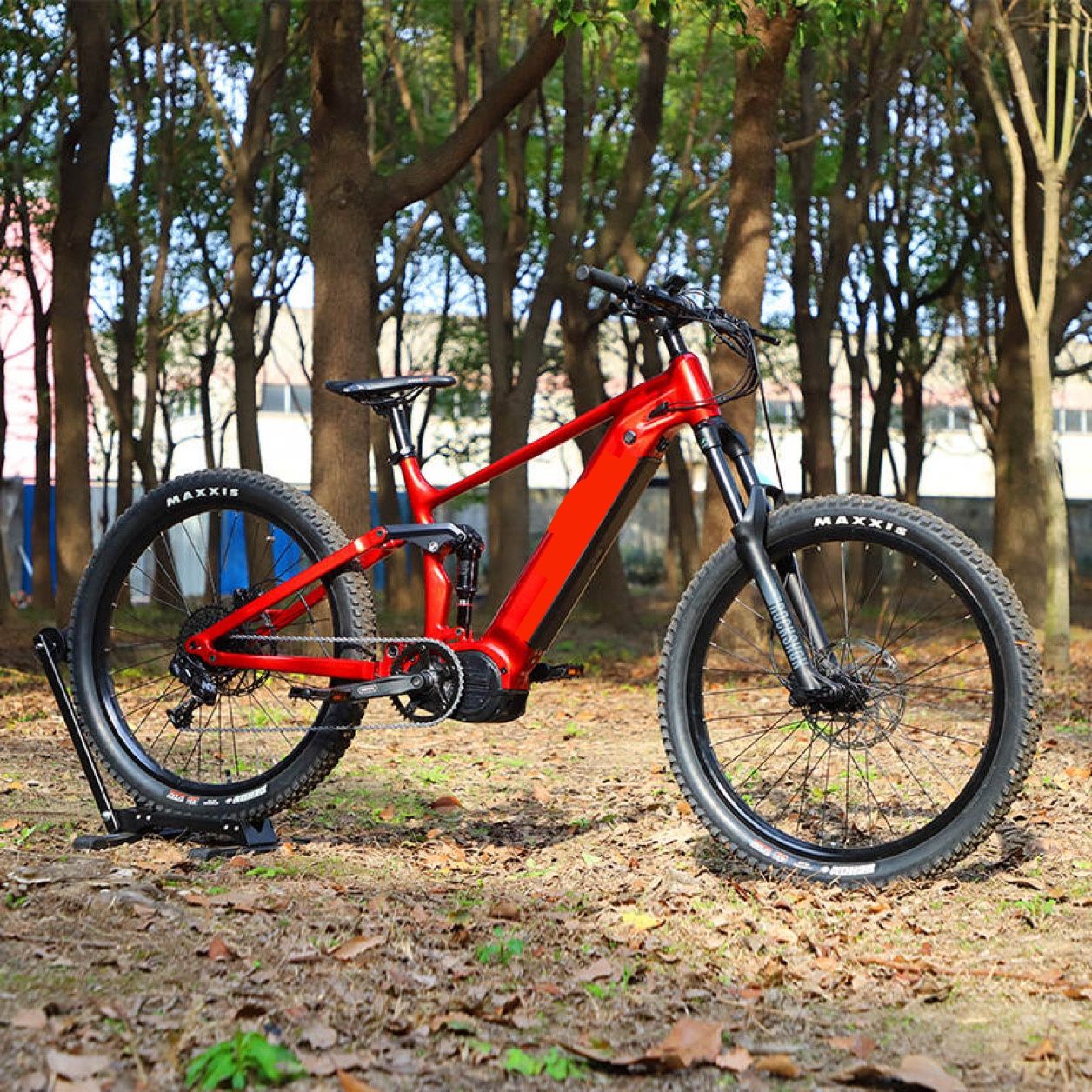

MARULA PLUS EMTB

MARULA PLUS

THE ONLY 29ER FULL SUSPENSION WELD-FREE FRAME POWERED BY ULTRA 1000W MID DRIVE WITH DUAL TORQUE SENSORS BUILT IN SOUTH AFRICA.

Inspired by the incredible Sustainability of Marula trees in Africa.

• Choose components to match your ideal sitting position for comfort.
• Wide range of pedal assistance levels so that you have the freedom to ride at any level that suits your level of fitness.
• Delivers battery energy for longer rides such as e-bike touring ( average 130km).
• Ride comfortably on single tracks , jeep tracks , dirt roads , rough or light trails and on-road - front and rear air shocks for cushioning-comfort no matter where you ride.
• Ability to override torque assist and pedal assist at any time in the case of an emergency or to easily take off immediately from a stationary point ( stuck in sand or from stop street or on steep hill ) by means of a small safety thumb throttle .
• The latest Low maintenance Shimano Cues Groupset OR Choose a Sram or another Shimano groupset that you prefer.

• 100% MONEY BACK GUARANTEE.
• 5 YEAR WARRANTY ON SAMSUNG BATTERY.
• PEACE OF MIND : 11.5 YEARS OF AFTER-SERVICE & SUPPORT EXPERIENCE.

( TO READ OUR REVIEWS PLEASE CLICK HERE )

BUILT IN CAPE TOWN .

DELIVERY : 75 DAYS FROM DATE OF YOUR ORDER RECEIVED.

---

FRAME

Material: Alloy 6061 Weld-Free.

Frame sizes : Medium 17" ; Large 19" and XL 21"

Colours: Red Metallic, Blue Metallic and Black Metallic

Artwork quality : High quality enamel with anti-rust treatment.

EU Frame safety tested EN15194

MOTOR

Bafang M620 1000w Mid drive. (Torque 160nM).

9 levels of Pedal assist (PAS).

Dual Torque sensor technology.

Thumb Throttle for emergencies which Overrides Pedal assist.

Fully reprogrammable parameters - configure to your own riding preferences.This is one of the beauties of such a versatile ebike kit : the ability to Re-programme the settings to configures one's own personal preferences. Riders own preferences for power, speed , pedal assist ( each of the 9 levels of PAS may be adjusted ) . Via a programming tool to suit each riders style and preferences.

Motor is Protected inside the frame from outdoor elements - rain , mud ,direct sunlight and potential knocks from rocks or other objects during riding. Motor Plates further protect against salt spray & water splash - ideal for coastal regions.

---

BATTERY

Locked in to frame and removable.

Long range Samsung cell lithium battery 48v 17.5ah ( 840WH)

Average range 130km ( medium level PAS).

---




MECHANICAL COMPONENTS

Front Fork: 29er XCR Boost Country Suntour Airshock 120mm Travel.

Rear air shock : Suntour rs24-edge-x2CR

Rims: 29" Tubeless double walled 36 holes for extra reinforcement.

Hubs : Solon Chromoly sealed bearings free body. 36 holes.

Tyres : Rock wolf 29" x 2.35" wide Tubeless

Seat Post : Ryder

Saddle: Memory foam

Cassette : Shimano 10 speed Cues U-6000 Series 11-48T

Derailleur : Shimano 10 speed Cues RD-U6000 series

Gear shifter : Shimano Cues 10 speed

Gear shift sensor - to protect groupset during gear changes.

Brakes : Tektro E-500 e-brakes cut off safety.

Rotors: Tektro Front and Rear 205mm

Pedals : Wide platform

Handlebar : Ryder Riser MTB specific

Grips : Ryder TPR soft Rubber with palm support.

FRAME SIZE GUIDE:

Chilled Squirrel has been building and servicing electric bikes in South Africa since 2014.We appreciate our environment and enjoy giving back.

With Greenpop we plant a Tree for you for Every Bike Rolled out.And we send you a Certificate with the Tree Co-ordinates.

Chilled Squirrel batteries are covered by a 5 year prorated Limited warranty.During the first 3 years of service – A defective battery will be repaired or replaced at no cost to the customer.The warranty period for a repaired or replaced battery remains unchanged based on original purchase date .
Frames are covered for 5 years from the date of Purchase.

T&C's Apply. For details of the Limited Warranty Please Visit This Link.

---

PLEASE NOTE:

We are continuously looking for ways to improve performance based on the availability of improved components and accessories therefore , these may change without prior notice with the aim of improving overall product performance .

Additional accessories displayed in pictures and not mentioned in the description above are for reference only . Available on request , Additional fees apply .
