WILDCAT FULL SUS STEP-THRU

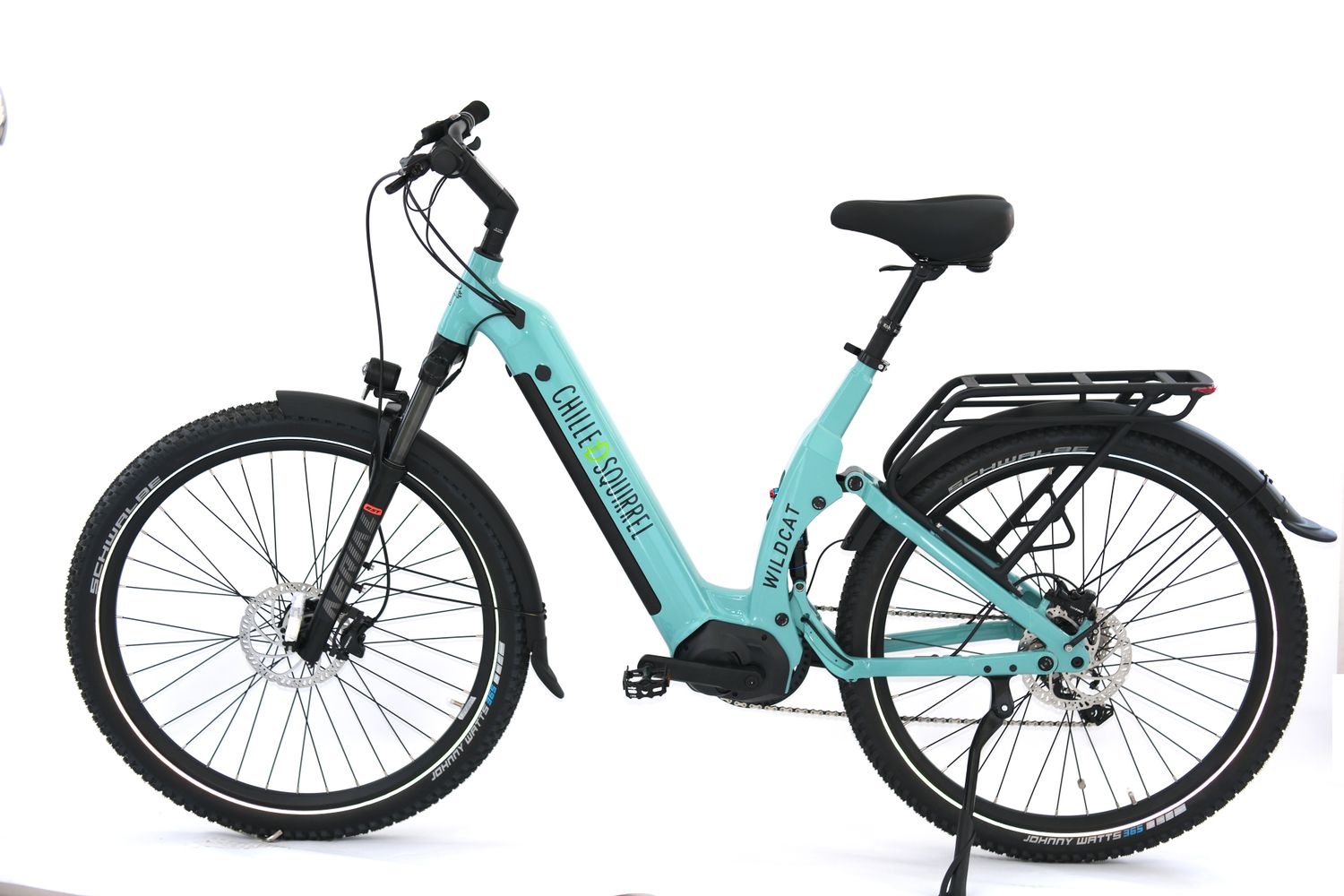

WILDCAT FULL SUSPENSION 29" STEP-THRU EMTB

---

Wildcat dual suspension Hybrid e-bike is designed to deliver superior comfort & convenience.

A light-weight Full Sus Step-Thru e-bike that takes the inconveniences out of cycling:

• No more swinging legs over a high top tube.
• No more big bumps at the rear shaking up your body.
• Feel more in control : When stopping while riding with a step-through you can easily stand up without a frame top tube in the way.
• Powered by a dual torque sensor mid drive motor system that synergizes intuitively with each person's level of fitness.
• And 9 levels of power assist - you get to choose the ideal level of power that suits your level of fitness.
• Wildcat is suited to people up to a weight of no more than 110kg.

---

ONE-OF-A-KIND UNIQUE FULL SUSPENSION STEP-THRU HYBRID E-BIKE.

PROUDLY BUILT IN SOUTH AFRICA.

---

• 100% MONEY BACK GUARANTEE.
• 5 YEAR WARRANTY ON SAMSUNG BATTERY.
• 11 YEARS OF EBIKE BUILDING AND SERVICING.

45~60 DAY DELIVERY FROM DATE OF ORDER.

---

• Pace your Rides according to your level of fitness and with pedal assist get fitter one ride at a time.
• Stay in an upright sitting position with our new adjustable handlebar stem.
• Stay safe with our new intergrated Rear and Front LED safety lights.
• Front and Rear airshocks offer Ultimate comfort .
• Say goodbye to the bumps and to discomfort when riding.

---

#1 The Frame

•Material : Alloy 6061
•Artwork: Glossy Military Camouflage Green
•Fork : Suntour XCR Boost 29" thru-axle.
•EU Frame safety standard-tested : EN15194

Life-Time Frame warranty.

---

#2 The Motor

• ANANDA 250w EU Street-legal Mid drive - dual torque sensor technology.
• Torque 80nM. 9 levels of Pedal assist (PAS).
• Fully reprogrammable motor parameters. Configure to your own riding preferences. Adjust either motor’s settings to power, speed , pedal assist ( each of the 9 levels of PAS may be adjusted ) . Connect to your computer and adjust Via a programming tool to suit each riders style and preferences.

LCD Screen : Colour with USB Type C connectivity.

Additional : Safety Thumb throttle to assist with immediate momentum when required.

---

#3 THE BATTERY

• EEL li ion battery is automatically locked-In to the frame down-tube when inserting it.
• Removable when unlocking it with a key ( Duplicate keys are included).
• Battery specs ;Samsung Li ion 18-650 cells 35E 3500 mah 48v 15aH ( 720wH ).
• Average Range : 120km on medium level PAS .

---

#4 The Components & Group-set

• Front Air shocks / Fork : 29" Cross-Country E-bike Ready Suntour XCR Boost Air shock ( Model # SF25-XCR34X-BOOST)
• Rear Air Shock: Suntour RS24-EDGE-X 2CR
• Rims : Double-wall strength CS 29" x 32 spokes
• Hubs: Solon 32 holes . Chromoly body with Sealed bearings.
• Tyres : Maxxis or Chao Yang 29* X 2.35" Tubeless.
• Seat post : Chilled Squirrel
• Saddle: Memory foam comfort .
• Cassette: Shimano 10 Speed Deore stainless steel 11-46T
• Derailleur: Shimano Deore 10 speed
• Gear Shifter : Shimano Deore 10 speed with gear sensor
• Brakes: Tektro Hydraulic disc E-brakes HD-E500 ( Dual Pistons ) with e-brake cut off Safety.
• Rotors: Tektro Front wheel 180mm / Rear wheel 160mm.
• Pedals: Rockbros.
• Handlebar : MTB riser handlebar .
• Uno adjustable stem : 90 degrees adjust to ensure upright sitting position ( adjust to your desired height based on your arm length and height)
• Stem: Chilled Squirrel
• Grips: Silicon comfort

* Please Note :

We are continuously looking for ways to improve performance based on the availability of improved components and accessories therefore these may change without prior notice with the aim of improving overall product performance improvement .

All accessories shown are for reference only . Additional fees will apply if you wish to have them installed .

---

GUIDELINE ON FRAME CHOICE:

• Riders Height 1.60 - 1.70m : 15”
• Riders Height : 1.70 - 1.80m : 17"
• Riders Height 1.80-1.90m : 19”

---

We want to ensure you are 100% satisfied.
100% Money-Back Guarantee or Exchange.

---

Chilled Squirrel batteries are covered by a 5 year prorated Limited warranty.

T&C's Apply. For details of the Limited Warranty Please Visit This Link.

---

Our Team cares about the environment .

Working with an Incredible NGO (greenpop.org) we'll plant a tree for you.

A certificate is provided indicating GPS co-ordinates for your tree in a Nature reserve.Welcome to visit on your e-bike !

FINANCE WILDCAT FROM R1538.80 PM APPLY HERE.
