UPTOWN

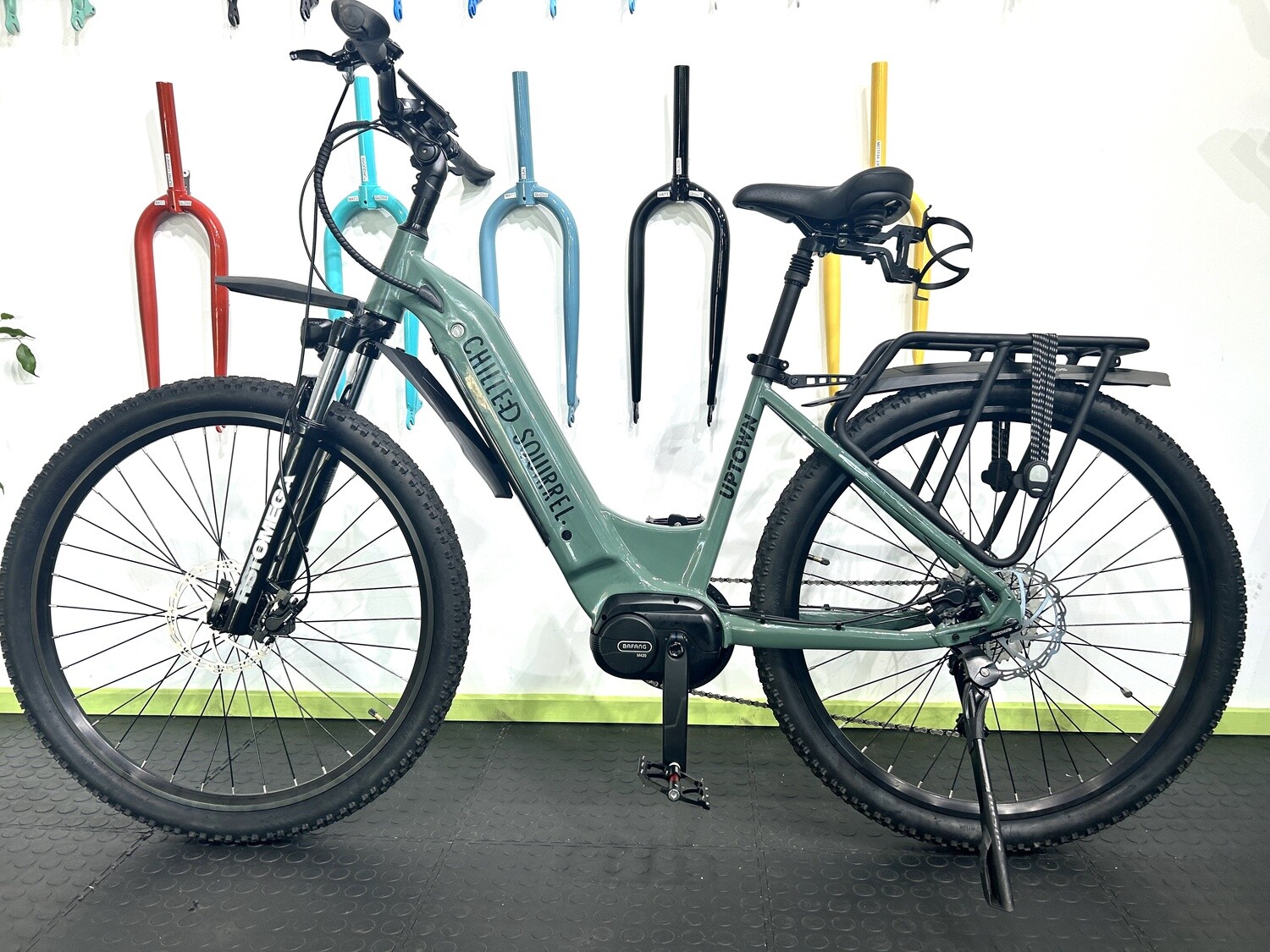

UPTOWN ELECTRIC STEP-THRU BIKE.

PROUDLY BUILT IN CAPE TOWN SOUTH AFRICA.

27.5* X 2.35" EMTB

• Torquey mid drive Electric bike powered by Pedal assist and Smart Dual Torque sensor Technology.
• An easy step-thru design electric bike for Light trails , Dirt roads or Great as a commuter on-road e-bike.
• Nice upright sitting position with an adjustable stem to adjust your arm length and sitting position.

Are you looking for any or all of these benefits when investing in your electric bike:

• the ease of getting on and off your e-bike.
• the ability to adjust the components to match your ideal sitting position for comfort.
• a wide range of pedal assistance levels so that you have the freedom to ride at any level that suits your level of fitness.
• a dual torque sensor and pedal assist electric bike that is super intuitive by picking up my level of fitness and delivering enough power when you need it .
• that delivers battery energy for an average of 110km.

• 100% MONEY BACK GUARANTEE.
• 5 YEAR WARRANTY ON SAMSUNG BATTERY.
• PEACE OF MIND : 11.5 YEARS OF AFTER-SERVICE & SUPPORT EXPERIENCE.

( TO READ OUR REVIEWS PLEASE CLICK HERE )

PROMOTION UNTIL 30 JUNE, 2025.

[ R10,093! FREE GEAR & CUSTOM COLOUR INCLUDED. ]

DELIVERY : 75 DAYS FROM DATE OF ORDER RECEIVED

UPTOWN STEP-THRU E-MTB	R 44,999
Choose your Own custom colour !	R 4500
Tree planted with Certificate from Greenpop.	R 300
Cell Phone Holder	R 999
Tyre Repair set	R 150
Alarm-Lock-In-One	R 849
Cycling Gloves	R 399
E-bike Chain Wax	R 499
Bike Mini Allen tool kit (11-in-one)	R 249
Water bottle holder for Handlebars	R 149
Wedge saddle bag ( under saddle to carry tools)	R 250
Nanotech Anti-Corrosion protection from USA.	R 450
Front LED Light built-in	R 1299
Total Value	R 55,092
And you Get : 5 Year Battery Warranty 100% Money-Back Guarantee. Free Delivery to All Major cities Nationwide * *Outlying towns and areas will require an upcharge.	You pay : R44,999 Savings: R10,093!



100% Money-Back Satisfaction Guarantee.

Cancel your order you up to 3 days After you receive Your order.







---




FRAME

• Material : Alloy 6061.
• Motor and Battery Integrated Frame.
• Artwork: High quality enamel gloss with anti-rust treatment .
• Colour : Army / Military Green:

• Fork : 27" Suntour Air shock
• EU Frame safety standard-tested : EN1519

---

MOTOR

• Bafang MM G332.250. 48V/250W UART

  Torque 80nM.

• 9 levels of Pedal assist (PAS). Average speed 32km/h.

• Cadence and Pedal assist functionality.

• Motor is Protected inside the frame from outdoor elements - rain , mud ,direct sunlight and potential knocks from rocks or other objects during riding.

  Protected against salt spray & water splash - ideal for coastal regions.

  Motor Fine-tuning - Fully reprogrammable parameters .

• Configure settings to your own riding preferences for power, speed , pedal assist ( each of the 9 levels of PAS may be adjusted ) . Via a programming tool to suit each riders style and preferences.

---

BATTERY

• EEL li ion battery is automatically locked-In to the frame down-tube when inserting it.
• Removable when unlocking it with a key ( Duplicate keys are included).
• Battery specs ;Panasonic Li ion 18-650 cells 35E 3500 mah 48v 14aH ( 672wH ).
• Average Range : 100km on medium level PAS .

MECHANICAL COMPONENTS

• Air Shocks : RST 28" hybrid 80mm travel ( On-road riding ) or 27.5" RST Aerial 110mm travel ( Light Off-road)
• Rims : Tubeless XC Comp Double-wall strength .
• Hubs: Solon 32 holes . Chromoly body with Sealed bearings.
• Tyres : 28* Tube or 27.5* x 2.35" Tubeless
• Seat post : Uno
• Saddle: RockBros Memory foam comfort .
• Cassette: Shimano 10 Speed Deore Shadow Plus 11-42T
• Rear Derailleur: Shimano Deore Shadow Plus 10 speed
• Gear Shifter : Shimano 10 speed Rapid Fire
• Brakes: Hydraulic E-brakes Disc with e-brake cut off Safety.
• Rotors: Tektro Front wheel 180mm / Rear wheel 160mm.
• Pedals: Wide platform
• Handlebar : MTB riser handlebar
• Stem: Uno adjustable / Ryder comfort ( based on each persons riding preference and needs)
• Grips: Ryder comfort

---

GUIDELINE ON FRAME CHOICE:

• Riders Height 1.50-1.65 : 15"
• Riders Height 1.70-1.80m : 17”
• Riders Height 1.80-1.90m : 19”

Chilled Squirrel has been building and servicing electric bikes in South Africa since 2014.We appreciate our environment and enjoy giving back. With GreenPop we plant a Tree for you for Every Bike Rolled out.And we send you a Certificate with the Tree Co-ordinates.

Chilled Squirrel batteries are covered by a 5 year prorated Limited warranty.During the first 3 years of service – A defective battery will be repaired or replaced at no cost to the customer.The warranty period for a repaired or replaced battery remains unchanged based on original purchase date .
Frames are covered for 5 years from the date of Purchase.

T&C's Apply. For details of the Limited Warranty Please Visit This Link.

---

PLEASE NOTE:

We are continuously looking for ways to improve performance based on the availability of improved components therefore mechanical specs may change without prior notice with the aim of improving overall product performance.

Additional accessories displayed in pictures and not mentioned in the description above are for reference only. Available on request . Additional fees apply.
